- Name:工业高压清洗机
- Category:ship marketing
- ModelEP5036 Ship Marketing
- Brand:JINY
- Drive Mode:Motor drive
- Install Mode:moving
- Order Number:925036
-
Working Pressure:500bar
Working Flow：33lpm -
Power:34.5KW
Weight:430kg - Packing Size:136*73*100 cm
|
MODEL |
ED5036 |
|
MAX. PRESSURE bar |
520 |
|
OPERATING PRESSURE bar |
500 |
|
FLOW L/min |
36 |
|
NOZZLE TYPE |
055 |
|
MOTOR POWER kw |
34.5 |
|
POWER SUPPLY |
380V/50HZ |
|
INLET TEMPERATURE ℃ |
0~60 |
|
INLET PRESSURE bar |
0.2~3 |
|
FILTER PRECISION um |
50~200 |
|
INLET |
1″ |
|
OUTLET |
M22×1.5 |
|
WEIGHT kg |
430 |
|
PACKING DIMENSION cm |
136×73×100 |
|
CODE |
915036 |
——Application：
· Tank cleaning
· Ship hull cleaning
· Marine surface prep
· Paint removal from ships.
· Clear oyster· Descaling
· Heat exchanger tube cleaning & pipe cleaning
· Deck cleaning· Vessel cleaning
——General Features：
· Triplex pump with 5 ceramic plungers
· Unloader valve, with by-pass system, infinitely variable volume and pressure
· Stainless steel liquid filled pressure gauge
· Micro Water Filter
· Temperature protection
· Motor with thermal protection
· Industrial motor, S1, IP55, F, with 100% running time（24h running）
· Pump and motor separated by flexible clutch
· Wheel heavy trolley mounted unit, epoxy painting
——Standard equipment：
· 1pcs High pressure hose, 10m
· 1pcs Spray gun
· 1pcs Stainless steel lance, 900mm.
· 1pcs Flat spray nozzle, ceramic nozzle, 15°
· 1pcs Straight jet nozzle, ceramic nozzle

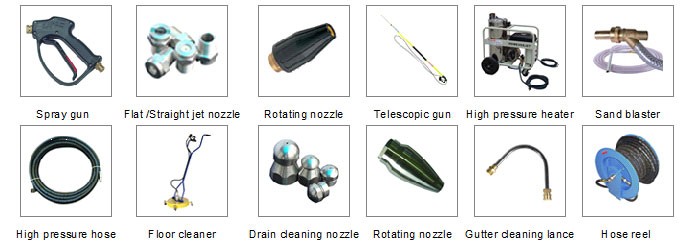

—— Available options：
|
Product |
Model |
Description |
|
|
1 |
Spray gun |
G560 |
560bar，Inlet:G1/2F， Outlet:G1/2F |
|
2 |
Stainless steel lance |
1/4MZL900(600bar) |
600bar，ZG1/4F，900mm |
|
3 |
Flat spray nozzle |
1/8MVNP15 |
500bar，ZG1/8M，15° |
|
4 |
Straight jet nozzle |
1/8MCP |
500bar，ZG1/8M，0° |
|
5 |
Rotating nozzle |
R50 |
500bar，Inlet:G1/4F |
|
6 |
Drain cleaning nozzle |
1/8FH50 |
500bar，Inlet:G1/8F |
|
7 |
Rotating drain cleaning nozzle |
1/8FRH35 |
350bar，Inlet:G1/8F |
|
8 |
Sand blaster |
SN50 |
500bar |
|
9 |
High pressure hose |
HP10/50-10 |
500bar，10m，ZG3/8M-M22×1.5 |
|
10 |
High pressure hose |
HP10/50-20 |
500bar，20m，ZG3/8M-M22×1.5 |
|
11 |
High pressure hose |
HP10/50-30 |
500bar，30m，ZG3/8M-M22×1.5 |
|
12 |
High pressure hose |
HP10/50-50 |
500bar，50m，ZG3/8M-M22×1.5 |
|
13 |
Drain cleaning hose |
HP06/50-10 |
500bar，φ17mm，10m，ZG1/8M |
|
14 |
Floor cleaner - rotating nozzlesr |
FC18 |
280bar，Inlet: M22×1.5 |
|
15 |
Telescopic gun |
GI28/700 |
280bar，2.5~6m，Inlet:G3/8F |
|
16 |
Hose reel |
CB15-8 |
200bar，Inlet:G3/8F |
——General Features：
· Triplex pump with 5 ceramic plungers
· Unloader valve, with by-pass system, infinitely variable volume and pressure
· Stainless steel liquid filled pressure gauge
· Micro Water Filter
· Temperature protection
· Motor with thermal protection
· Industrial motor, S1, IP55, F, with 100% running time（24h running）
· Pump and motor separated by flexible clutch
· Wheel heavy trolley mounted unit, epoxy painting
——Application：
· Tank cleaning
· Ship hull cleaning
· Marine surface prep
· Paint removal from ships.
· Clear oyster· Descaling
· Heat exchanger tube cleaning & pipe cleaning
· Deck cleaning
· Vessel cleaning
